Scansonic HD MB3.5B gulvhøjttaler - VALNØD

Du skal være logget ind for at kunne lave bestillinger

  • BEMÆRK: Billeder er kun illustrative
  • Scansonic HD serien - designet og produceret i Danmark
  • 2 x 4,5'' carbon-coned mellemtone/woofers, sealed ribbon tweeter og 2 x 6,5'' aluminum coned woofers
  • Impedance >5 Ohm
  • Frekvensrespons 27-40.000 Hz
  • Crossover 150 Hz + 2600 Hz
  • Sensititet 89 dB
  • Anbefales til forstærkere på over 50 Watt
  • Mål (BxHxD) 178x1138x286 mm
  • Justerbare alu fødder

http://scansonichd.dk/product-detail1/mb-3-5/

Lagerstatus: Forventet levering 3-5 dage

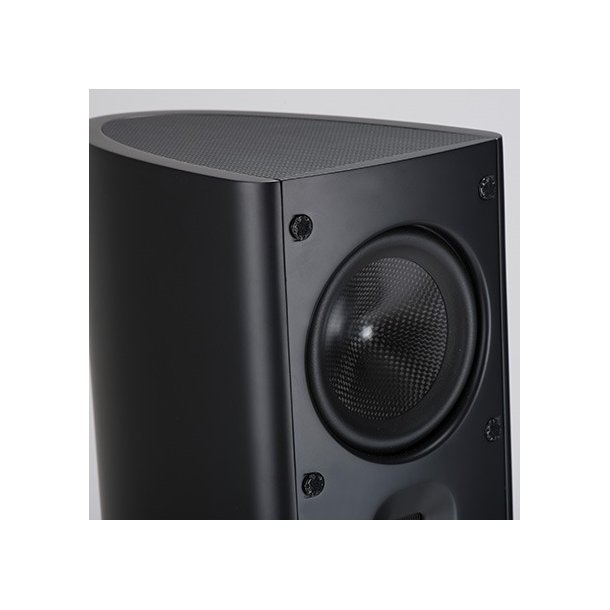

The MB-3.5 is a slim floorstander with two 4.5? carbon-coned drivers, a sealed ribbon tweeter and two 6.5? woofers.

The MB-3.5 works as a 2.5-way speaker, where the two midrange-woofers are supported by two 6.5? aluminum coned woofers.
The two carbon midrange-woofers are run in series for increased power handling.

The MB-3.5 cabinet is heavy, braced and curved, with carbon reinforcements. The speaker is crossed over at 3.5 kHz and the two added side woofers assist up to 200 Hz.

The MB-series features high quality crossover with top quality components and a complete cable harness from Ansuz Acoustics.
The filter has been carefully tailored to linearize the frequency region where cone and cabinet geometry play a role and also to carefully tune the speaker to a natural sounding frequency response.


Technical information

Size: (WxHxD) 178 x 1138 x 286 mm
Weight: 20,8 kg
Freq. response: 30 Hz - 40 kHz
Impedance: > 6 ohm
Crossover: 3.5 kHz 2. order acoustic slope 250 Hz 1.order slope
Enclosure: Curved, heavily braced, ventilated box design with front loaded port and adjustable aluminum feet
Drive units: 1 sealed ribbon tweeter with kapton/aluminum sandwich membrane
2 carbon coned 4,5? bass/mid driver with overhung magnet system
2 Aluminum coned 6,5? bass drivers
Finish: Black-silk or White-silk
Amplification: We recommend high quality amplifiers >50W
